Printhead Quantity: 8
Printhead: Epson I3200-A1
Print Width: 1900mm
Print Colors: CMYK/CMYK+4 COLORS
Max.resolution (DPI) :3200DPI
Max speed CMYK: 1pass 370㎡/h
Ink Type: Sublimation Ink,Water Based Pigment InkRIp Software: Printfactory, Maintop, Flexiprint, Onyx, Neostampa
1. Anti-collision small frame: The height of the nozzle can be adjusted freely according to different printing consumables. It is widely used and easy to adjust; anti-collision devices are added at both ends to provide more comprehensive safety protection for the nozzle.

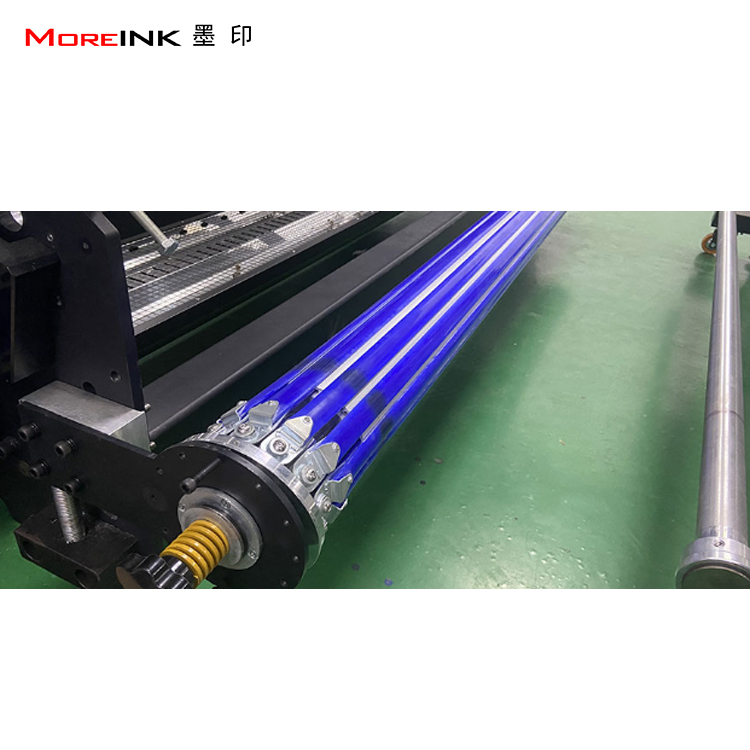

2. Inflatable shaft type rewinding and unwinding system: During operation, there is no need to use other accessories to fix the printing medium, and the air pressure can be used to automatically adjust. Make the force uniform and make the paper run more smoothly. The unwinding and unwinding system supports unwinding and unwinding of 1,500-meter full rolls of 40 grams of paper, and supports a maximum roll diameter of 400mm. The unique swing bar in the rewinding and unwinding system ensures that the paper is evenly stressed during the entire printing process, and the rewinding is smooth and tight, avoiding loose rewinding.
3. The advanced intelligent nozzle cleaning and moisturizing device provides safe and convenient nozzle cleaning and maintenance functions, and the operation and maintenance are more convenient.
4. The fluorine rubber press roller imported from the United States prevents static electricity from flying ink, and the printing size is more accurate; the unique lifting device for the press roller can deal with the phenomenon of partial paper swelling during the printing process at any time.
5. Japanese THK silent linear guide rail, with stable movement and longer life, can effectively reduce the resistance and noise during the operation of the ink car during high-speed movement.
6. The default value of the firmware parameters has been set before leaving the factory, and there is basically no need to recalibrate before use, which is more convenient to use.

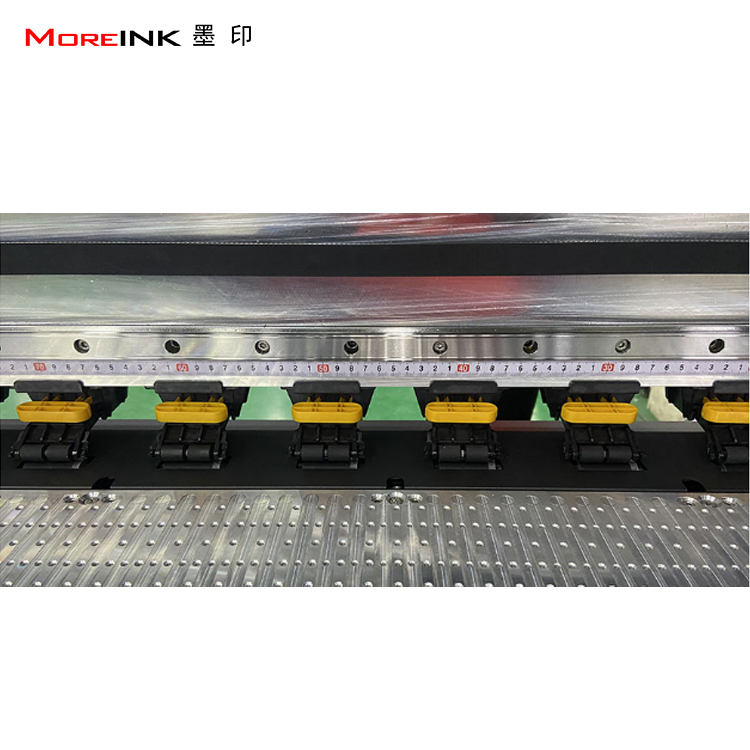

7. The new dislocation arrangement of nozzles
The new dislocation arrangement of nozzles solves the inconsistency of the left, middle and right effects on the printing platform, and improves the printing quality by at least 20%.
| ENJET E78-190 | ||||
| Printhead | Epson I3200-A1 | Nozzle Quantity | 3200 | |
| Printhead Quantity | 8 | Print Width | 1900mm | |
| Print Colors | CMYK/CMYK+4 COLORS | Print Height | 2-5mm | |
| Max. resolution (DPI) | 3200DPI | Media Transmit | Auto Media Feeding andTaking-up System, Roll to Roll | |
| Max speed CMYK(1.9m printing width, 59feather) | 1pass | 370㎡/h | Drying Method | Extra Dryer Device |
Speed*Tested on linear printing without feather function | 1pass | 370㎡/h | Ink Supply Method | Siphon Positive Pressure Ink Supply |
| 2pass | 185㎡/h | Head Moisture Method | Auto Head Cleaning and Moisturizing | |
| Print Media | Transfer Paper | |||
| Bulk Tank Capacity | 5L/15L | Material Transmit | Inflatable Roller Auto Feeding and Take-upSystem | |
| Ink Type | Sublimation Ink,Water based Pigment Ink | Transmission Interface | Gigabit LAN | |
| Max. Media Taking up (40g paper) | 1500m | Max. Media Feeding(40g paper) | 2000m | |
| Computer System | Win7 64 Bit / Win10 64 Bit | File Forms | TIFF, JPG, EPS, PDF, etc. | |
| Operate Environment | Temp.:15°C-30°Humidity:35°C-65°C | RIp Software | Printfactory, Maintop, Flexiprint, Onyx,Neostampa | |
| Printer Size | 3725*1455*1810mm | GW(KGS) | 1300 | |
| Package Size | 3900*1340*2040mm | Power Supply | 0210-230V.50/60HZ16A Print Power: 1500W Drver Power: Max.9000W | |
| Computer Configuration | Hard Disk: NTFS, C Disk Space: More than 100G, HARD Disk:WG500G GPU: ATI Discrete GPU,CpU: Intel i5/i7, Gigabit LAN | |||
| Standard Configuration | Ink Level Alarm System | |||
Machine Size：3725*1385*1810mm
Pakage Size：3870*1320*2020mm
