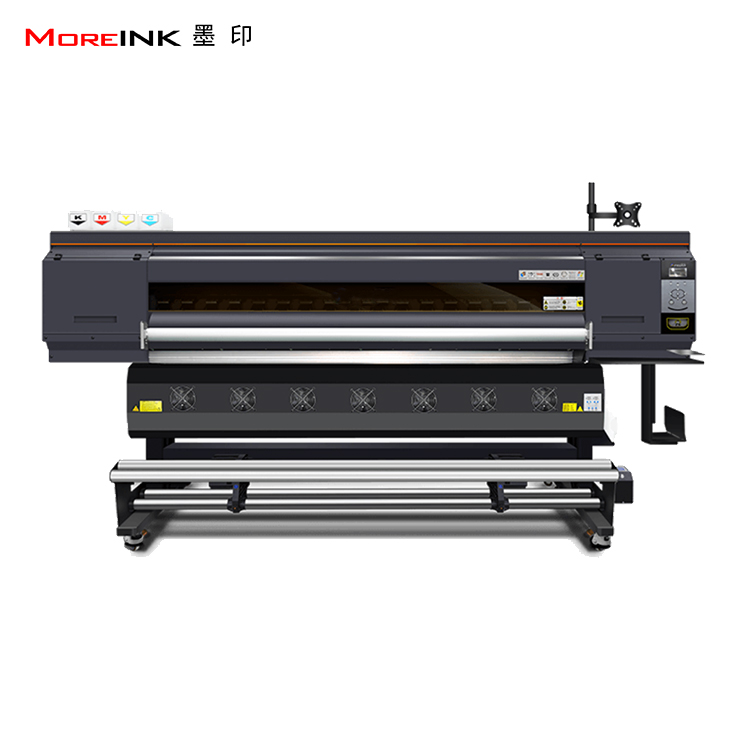

ENJET E73-190 Sublimation Printer

Printhead Quantity: 3

Printhead: Epson I3200-A1

Print Width: 1900mm

Print Colors: CMYK/CMYK+2 COLORS

Max.resolution (DPI) :3200DPI

Max speed CMYK: 2pass 162㎡/h

Ink Type: Sublimation Ink,Water Based Pigment Ink

RIP Software: Printfactory, Maintop, Flexiprint,Onyx, Neostampa


1. Ink stack: Equipped with advanced intelligent nozzle cleaning and moisturizing device, it provides safe and convenient nozzle cleaning and maintenance functions, and the operation and maintenance are more convenient.


2. Motor: Servo and stepper adopt Leisai high-quality brushless integrated motor, high-precision drive linear decoding, higher precision, smaller error, and more stable operation.

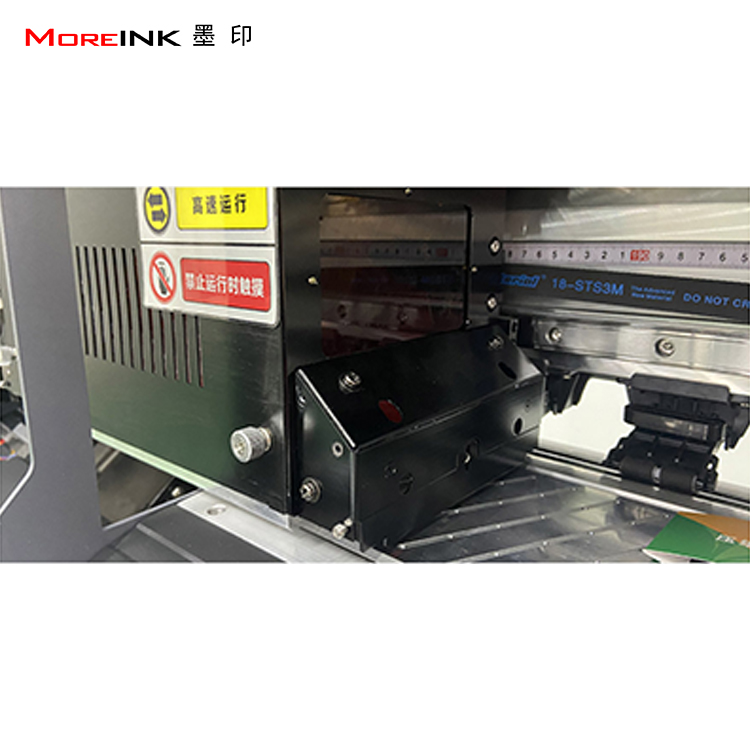

3. Guide rail: THK silent guide rail imported from Japan is used to effectively reduce the resistance and noise during the operation of the ink cart.

Imported press roller: US fluororubber press roller, smooth paper feeding, no wrinkle, prevent static electricity and ink flying, and more accurate printing size.


4. Ink cartridges: 4 large-capacity ink cartridges independently and continuously supply ink, providing guarantee for the continuous operation of the equipment for a long time.


5. Intelligent ink shortage alarm: intelligent ink shortage reminder, reducing the tediousness of frequently checking the ink remaining, and reminding to add ink in time to ensure the continuity of printing work.


 ENJET E73-190
 Printhead Epson I3200-A1
 NozzleQuantity 3200
 Printhead Quantity 3
 Print Width 1900mm
 Print Colors CMYK/CMYK+2 COLORS Print Height 2-5mm
 Max. resolution (DPI)3200DPI Media Transmit Auto Tension Taking-up Media Device
 Max speed CMYK(1.9m printing width, 59 feather)2pass        |               162㎡/h Drying Method

 Extra Dryer Device

 Speed*Tested on linear printing without feather function

 3pass        |               85㎡/h Ink Supply Method Siphon Pasitive Pressure Ink Supply
 4pass        |               65㎡/h Head Moisture Method Auto Head Cleaning and Moisturizing
 6pass        |               45㎡/h Print Media Transfer Paper
 Bulk Tank Capacity 4L Material Transmit Tension System
  Ink Type Sublimation Iink.Water Based pigment ink Transmissioninterface Gigabit LAN
  Max. Media Taking up (40g paper) 200m Max. Media Feeding(40g paper) 300m
  Computer Systemi Win7 64 Bit / Win10 64 Bit File Forms TIFFJPG, EP5. PDF. etc.
  Operate Environment Temp:15C-30CHlumidity: 35C6C Rip Software Printfactory, Maintop, Flexiprint, Onyx, Neostampa
 Printer Size 3180*1025*1670mm GW(KGS) 470

 Operate Environment


 Power Supply

 210-230V 50/60HZ16A

 Print Power: 1000W

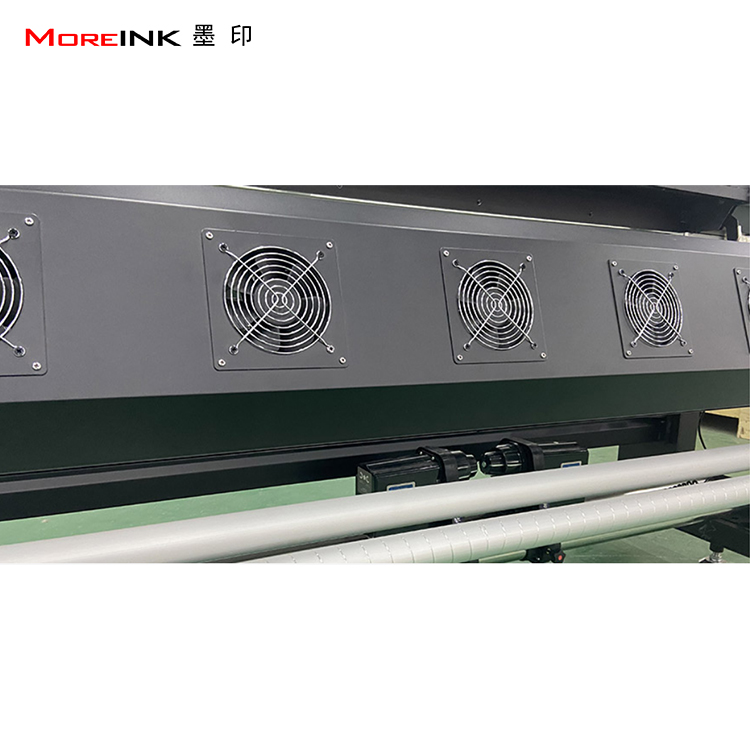

 Dryer Power: Max3500W

 Computer Configuration Hard Disk: NTFS. C Disk Space: More than 100G. HARD Disk: WGS00G GPU: ATI Discrete GPu.Memony: 4G, CPU: Intel 15/17, GEthernet
 Standard Configuration ink Level Aarm System

Machine size



Machine Size:3180*1025*1670mm

Package Size:3360*950*1150mm
